SKYRC BD380+ discharger
- Regular price
- $208.00 AUD
- Sale price
- $208.00 AUD
- Regular price
-

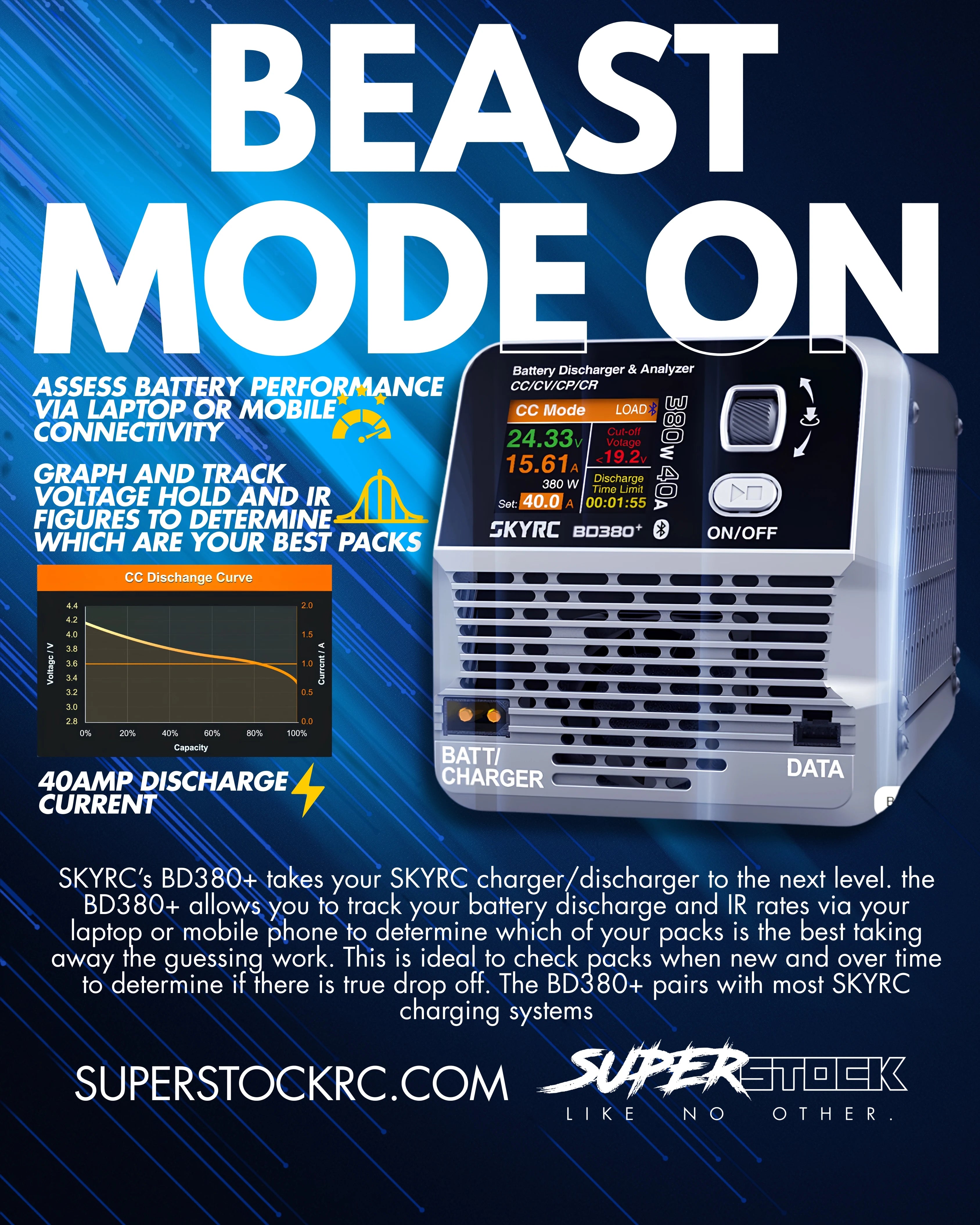

SKYRC’s BD380+ takes your SKYRC charger/discharger to the next level. the BD380+ allows you to track your battery discharge and IR rates via your laptop or mobile phone to determine which of your packs is the best taking away the guessing work. This is ideal to check packs when new and over time to determine if there is true drop off. The BD380+ pairs with most SKYRC charging systems
Case Material: PC-ABS V0
Case Size: 159.7*110*121.6mm
Weight: Approximately 1100g
Display
Display Type: TN
Size: 1.77 inch
Panel Active Area: 43.20*57.60mm
Resolution: 160x128 Pixel
Number of Colors: 262K
Power
DC Input Voltage: 3-30V
Discharge power: Max. 380W
Battery Connector Interface: XT60
Discharge: 0.3A-40.0A
Operating mode
CC Constant Current: 0.3-40.0A
CR Constant Resistance: 1-100Ω
CP Constant Power: 1-380W
CV Constant Voltage: Maximum power is 180W. Note: Do not connect the battery in this mode
Working and Storage
Operating temperature: 0℃-40℃
Working humidity: 0%-75%
Storage temperature: -10℃-70℃
Storage humidity: 0%-75%
